Details
Make everything simpler and feel the happiness grow inside. The useful, adaptable electric assistance of the T-Tronik makes your daily travel effortlessly easy, so you can focus on all the things that make you smile.

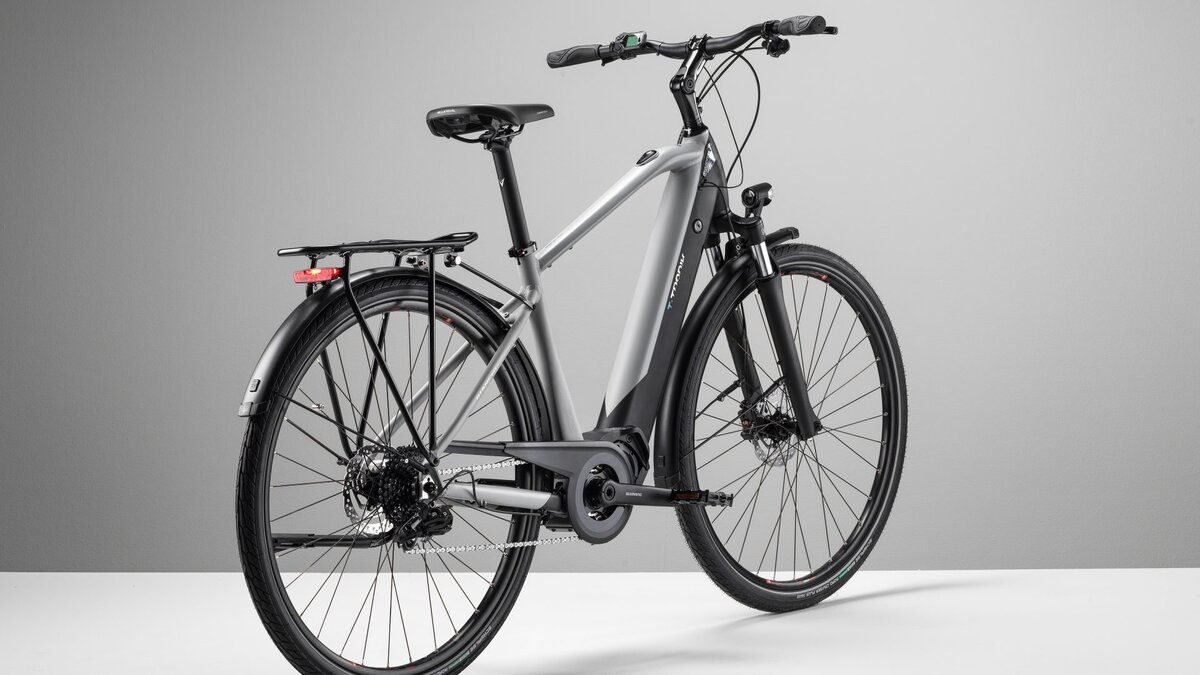

The Bianchi T-TRONIK T-TYPE is not limited to use in urban environments. This versatile bike is ideal for active riders who want to ride beyond city limits. Adventures unfold easily with the T-Type thanks to the front suspension and capable tires. With the rear luggage rack, you can ride with everything you need neatly packed away and unburdening you. Suspension forks maintain a smooth ride, even on cobbles or uneven surfaces. Mudguards protect the bike and rider from dirt and water spray in poor weather. The rear carrier on the T-TRONIK bikes has a load capacity of up to 25kg, which is more than plenty for groceries or items needed for work. The T-TRONIK range uses a premium Shimano STEPS E6100 motor, and a 250W Phylion 417Wh battery for an impressive range up to 60mi. Powerful torque of up to 60Nm provides more than enough assistance for hills or setting off at junctions. The adjustability of the stem allows you to find the perfect riding position for ultimate comfort in the saddle. A 100-lumen front light drastically improves visibility on the roads, with the light visible up to 400 metres away. The rear light is visible up to 500 metres away for safety.
Specs
Motor Specs | Shimano E6100 250W, torque 60Nm |
---|---|
Battery Type/Weight | 417Wh Phylion integrated battery |
Frame | T-Tronik T-Type Frame 28" Tourer Step-through, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 43/47 |
Fork | "Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8"", travel 63mm, compatible with fender, OLD 100mm, Quick relase type" |
Tires | Chaoyang E-Liner City 700x45C, 60tpi |
Bottom Bracket | included in the motor |
Crankset | Shimano FC-E6100, 170MM CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM |
Shifters | Sram X5 1x9sp |
Rear Derailleur | Sunrace, 9sp, max 42T |
Chain | KMC E9s EPT |
Brakes | Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter |
Rotors | Radius Rotors RT900, 160mm, center lock |
Handlebars | Velomann 31.8/680mm, RISE 20MM, SWEEP 15° |
Grips | Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm |
Stem | Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore |
Headset | FSA 1.1/8" 44H-N10P |
Seatpost | Velomann, lenght 350mm, diam.31,6mm, 0mm seatback, Al2014 shaft + alloy head |
Saddle | Selle Royal, Essenza |
Mudguards | SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard |
Kickstand | Ursus R81 WAVE REAR, 28" - 40mm fixing plate (load 35kg) |
Rear Carrier | Racktime, RT Eco 2.0, 28", black w/ roundstay 350mm |
Front Light | Herrmans Mr GO |
Rear Light | Axa Juno |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
TY - URBAN GRAY / GRAPHITE / 43/SM | 8032809055983 | YRBT9U43TY | 210000010241 |
TY - URBAN GRAY / GRAPHITE / 47/LG | 8032809049890 | YRBT9U47TY | 210000010242 |
2T - GREEN / GRAPHITE / 43/SM | 8032809055976 | YRBT9U432T | 210000010243 |
